Wall mounts - for mounting adsorbers next to the system.

Simple screw-on / hook-in solution.

No modifications to the system required

Perfect for adsorber installation on hydraulics, gears, barrels, IBCs & storage tanks


BUY ONLINE HOW IT WORKS INSTALLATION TECHNICAL DATA FAQ DOWNLOADS


Assembly made easy.

It is not always possible to install an adsorber directly on the system. If space is very limited, wall mounts can help. They are hung on a grid near the system or screwed to walls and connected to the system via a hose.


BUY ONLINE


How it works.

Wall mounts are screwed to walls next to the system or hooked into fences and connected to the system via a hose. They have a G1“f or G3/4”f thread into which the adsorber can be screwed. OSL wall mounts also feature a clamp to mechanically secure larger adsorbers.


BUY ONLINE

Installation of a wall mount.

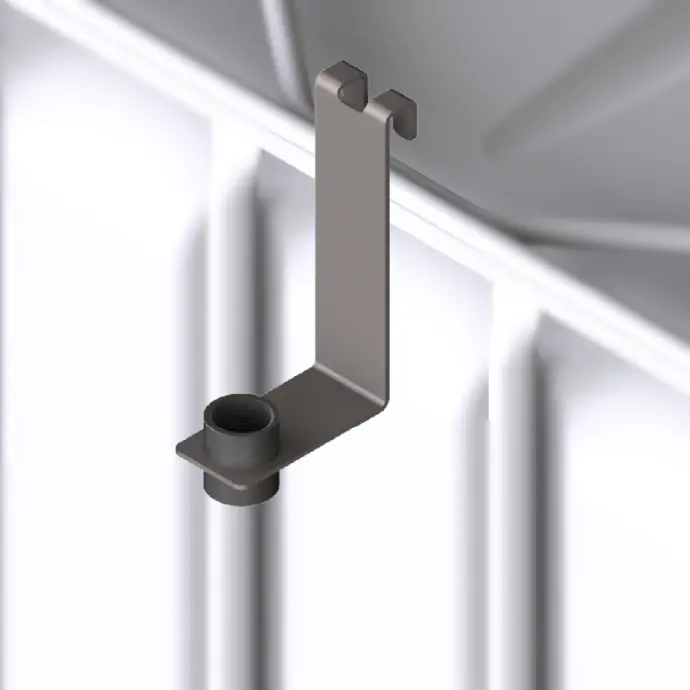

Step 1: Wall Mount HK

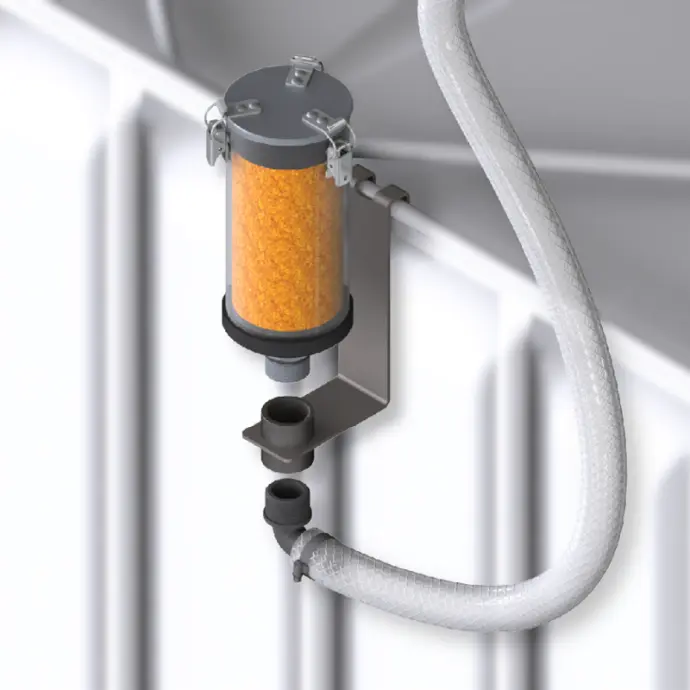

Step 2: Adsorber + Hose

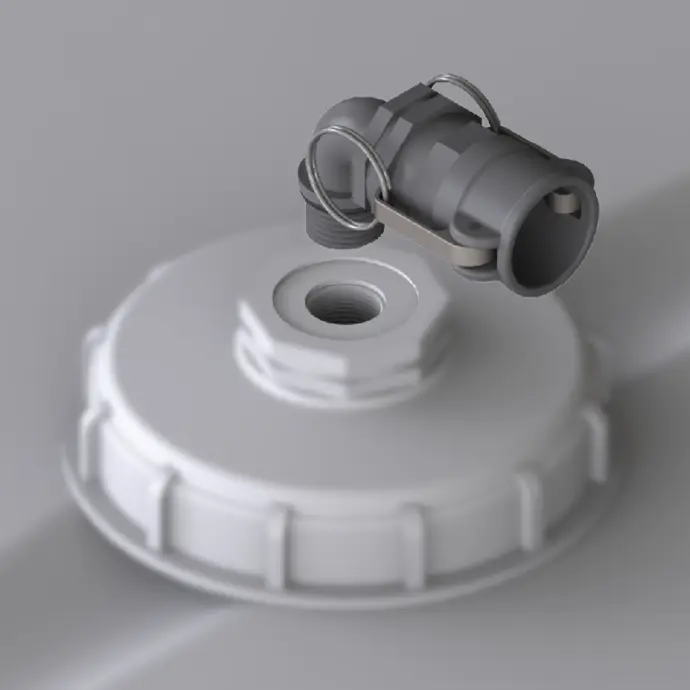

Step 3: Hose Nozzle

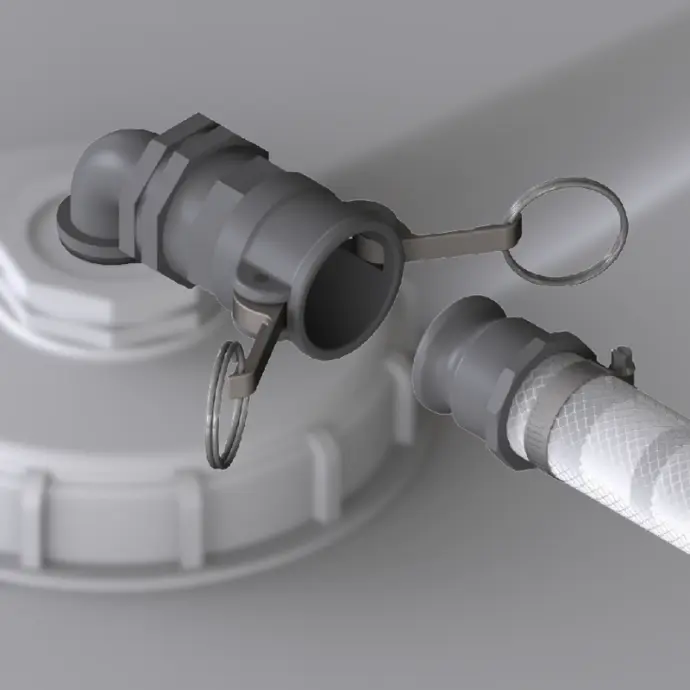

Step 4: Camlock coupling

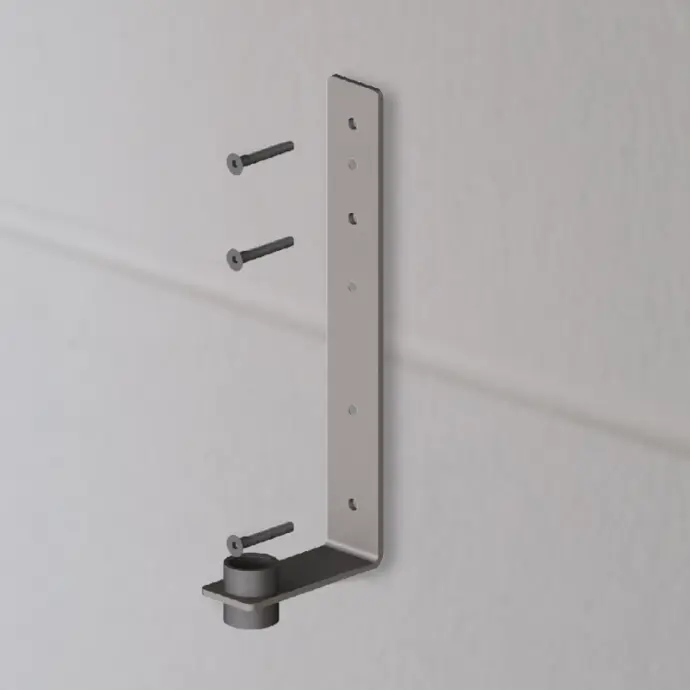

Step 1: Wall mount OSL

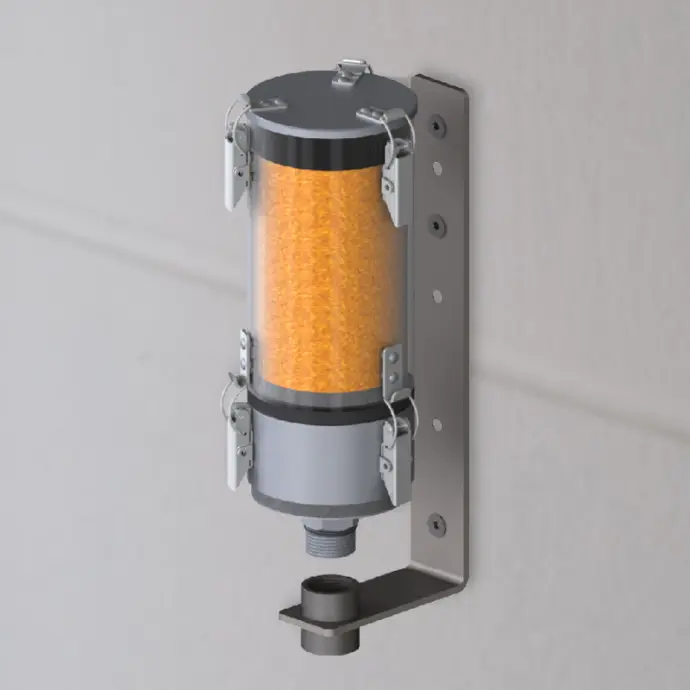

Step 2: Adsorber

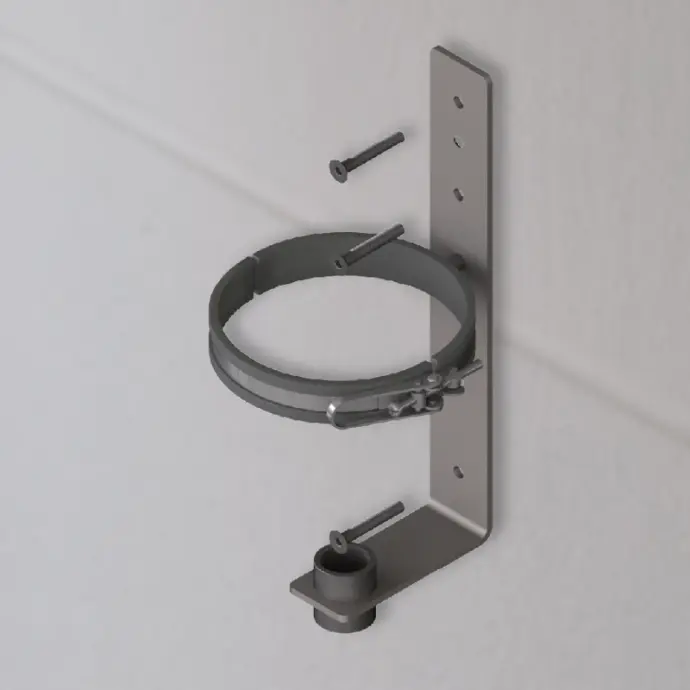

Step 1: Wall mount SL

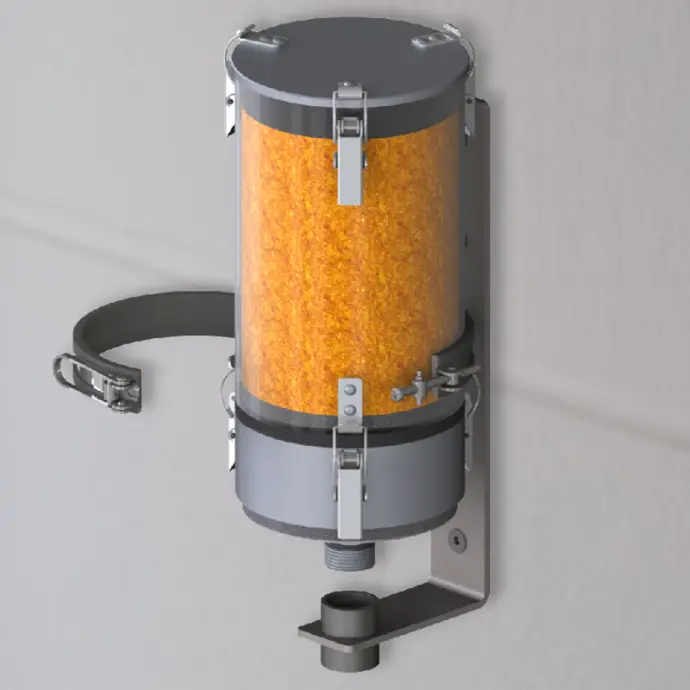

Step 2: Adsorber

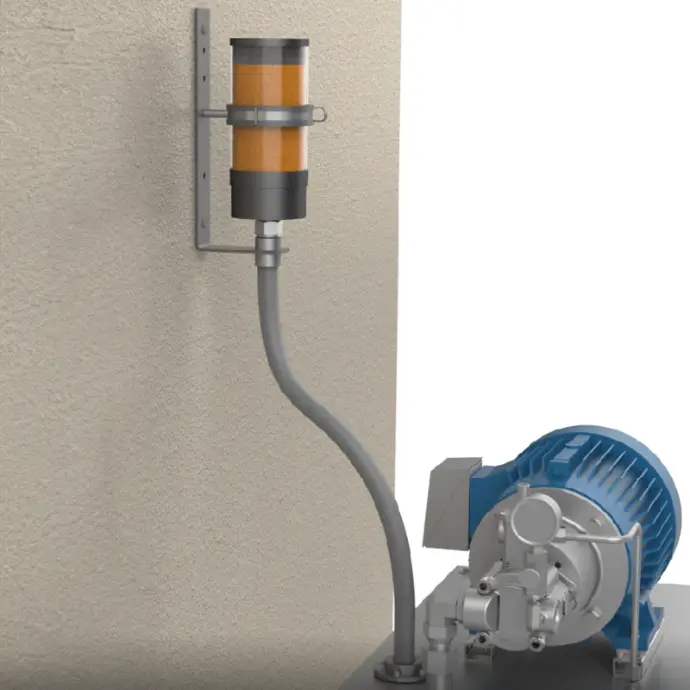

Step 3: Hose


Technical data.
WALL MOUNT WH-OSL G3/4"f WH-OSL G1"f WH-HK 3/4"f WH-HK G1"f WH-SL-3 G1"f WH-SL-5 G1"f WH-SL-5 VL
TOTAL WEIGHT
(KG)		 1.02 0.96 0.53 0.47 1.51 1.64 0.18
HEIGHT
(MM)		 320 320 182 182 320 320 320
Width
(MM)		 50 50 50 50 114 154 150
Depth
(MM)		 130 130 106 106 130 130 77,02
CONNECTION G3/4"f G1"f G3/4"f G1"f G1"f G1"f G1"f
FOR ADSORBER SIZE 5 5 2 & 3 2 & 3 3 5 5


Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Downloads.

PRESENTATION WALL MOUNTS (EN)

PRESENTATION WALL MOUNTS (DE)
