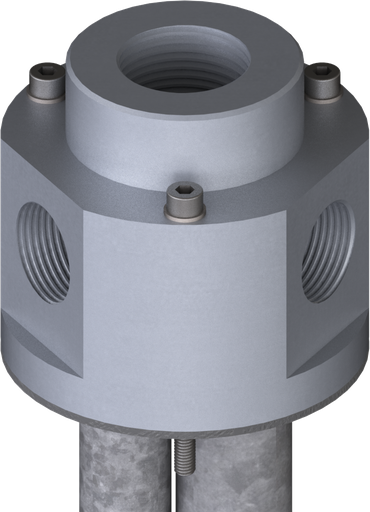

Suction lances - for connecting barrel pumps & bypass filter systems during adsorber operation.
Simple screw-on solution
No modifications to the system required

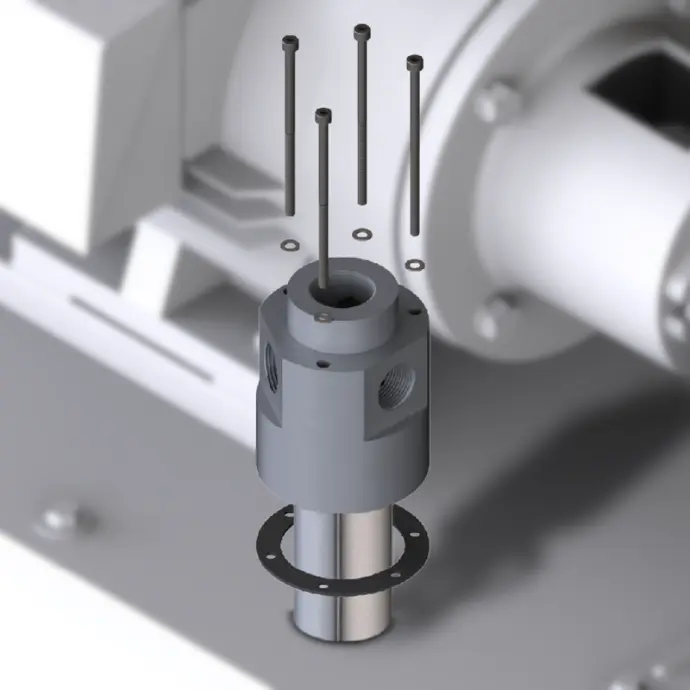

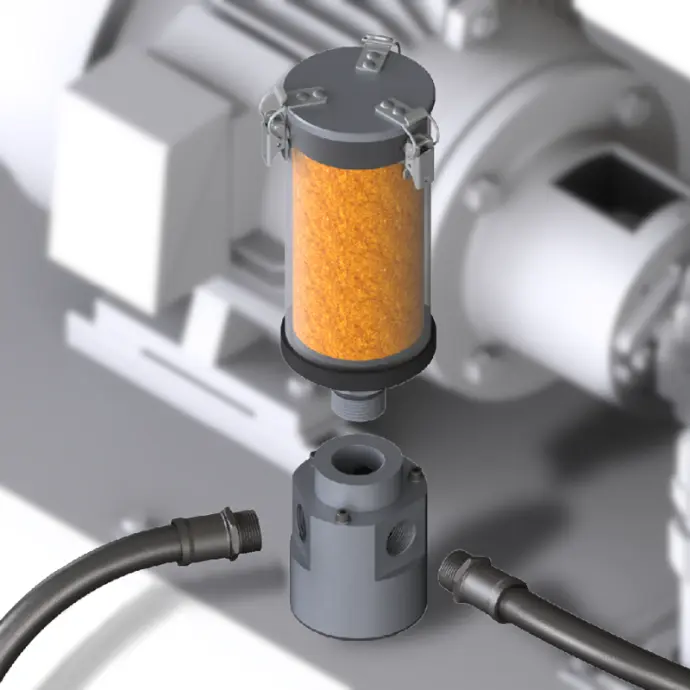

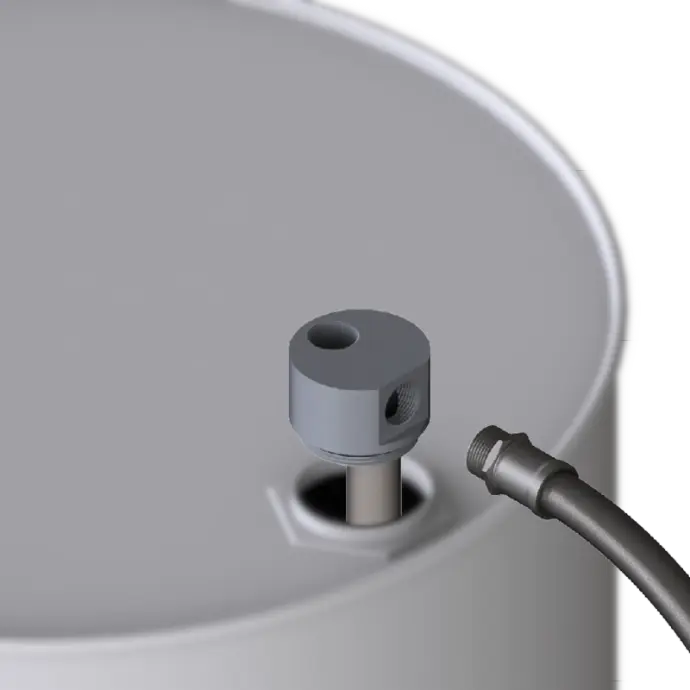

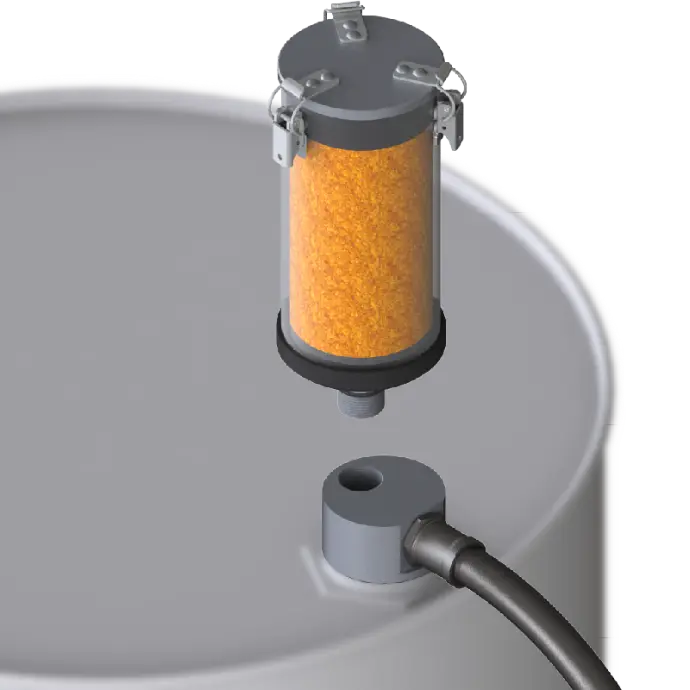

Perfect for adsorbers mounted on hydraulics, barrels & IBCs
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Technical data.
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|

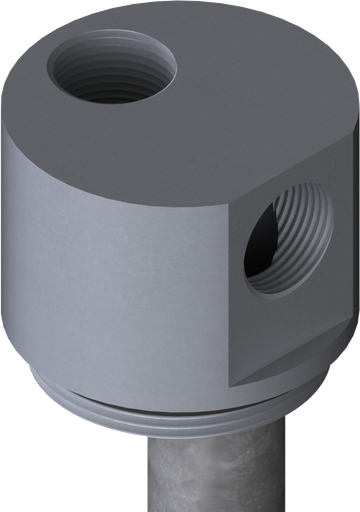

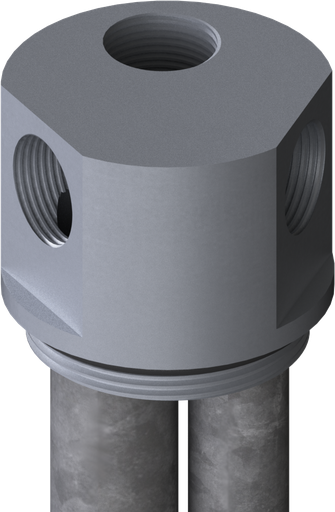

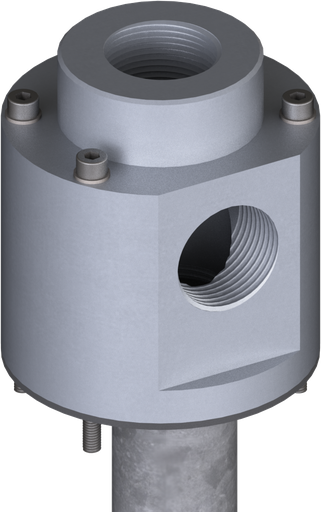

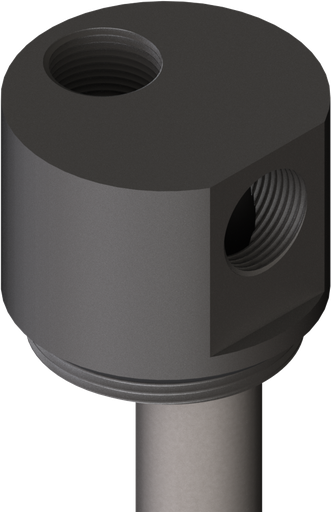

| SUCTION LANCES | AL 2x-By G3/4"f - G2"m | AL 1x-By G3/4"f - G2"m | SS 1x-By G3/4"f - G2"m | 1x-By LK73 | 2x-By LK73 |
| TOTAL WEIGHT (KG) |
2.220 | 1.795 | 2.643 | 3.08 | 2.31 |
| HEIGHT (MM) |
53 (+856 inside) | 53 (+856 inside) | 53 (+856 inside) | 92 (+847 inside) | 77 (+847 inside) |
| DIAMETER (MM) |
70 | 70 | 70 | 85 | 85 |
| CONNECTION | 2x G3/4"f (for bypass), G3/4"f (for adsorber), G2"m (for system) | 1x G3/4"f (for bypass), G3/4"f (for adsorber), G2"m (for system) | 1x G3/4"f (for bypass), G3/4"f (for adsorber), G2"m (for system) | 1x G1"f (for bypass), G1"f (for adsorber), LK73 (for system) | 2x G3/4"f (for bypass), G1"f (for adsorber), LK73 (for system) |
|
|
|
|
|
|
|---|---|---|---|---|---|
