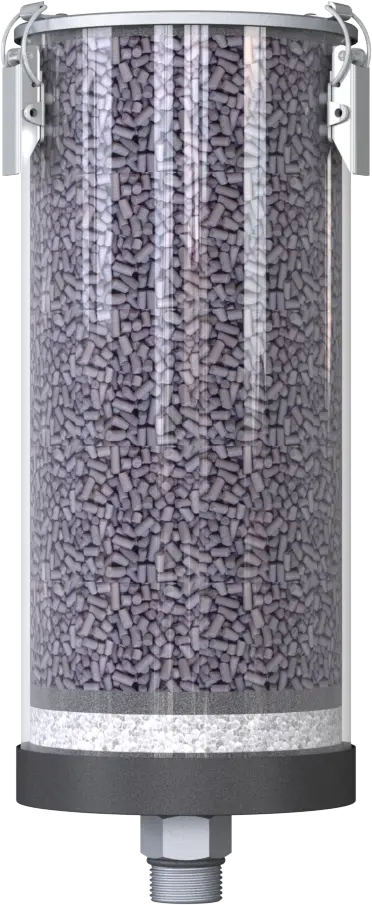

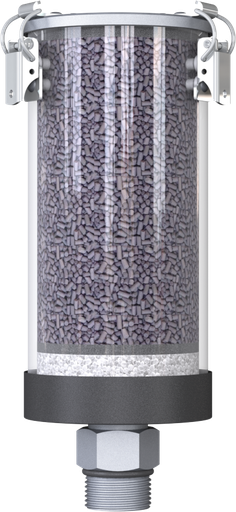

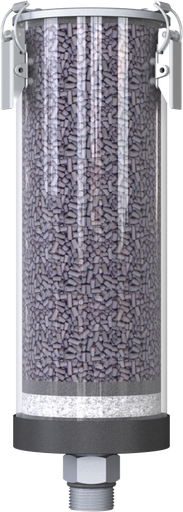

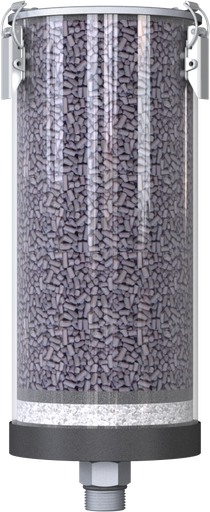

The VG-R series: Oil mist separators to protect hydraulics, gears, barrels & IBC against the escape of oilmist & pollutants.

Cleans the air coming out of the unit

Adsorber for oil mist, pollutants & odors
Recommended for tubro gearboxes, test benches and recirculating oil lubrication systems

Suitable for indoor, outdoor & offshore use


SHOP ONLINE


Refillable

Sustainable multiple-use adsorber.

ATEX

Not suitable for explosion protection zones.

Offshore suitable

Suitable for use in salty air.

REACH compliant

Safe and harmless product.

RoHS compliant

Safe and harmless product.

IP protection class

IP 63

UV resistance

High

Operating temperature

-40°C to +80°C

Corrosivity class

C4

Material information

Aluminium,  polycarbonate (PC), galvanised steel, polyamide (PA), polyvinyl chloride(PVC), FKM, activatedcarbon, silica gel colourless

Suitable substances

Hydraulic oil, gear oil, biological oil, vegetable oil, transformer oil, insulating oil, AdBlue (Urea), diesel fuel, isocyanates, polyols, anhydrite/...adhesives, resins, amines, PU metal catalysts, flame retardants, diethanolamine, silicone

VG-R
A
B
C
D
E
F
G
H
I
J

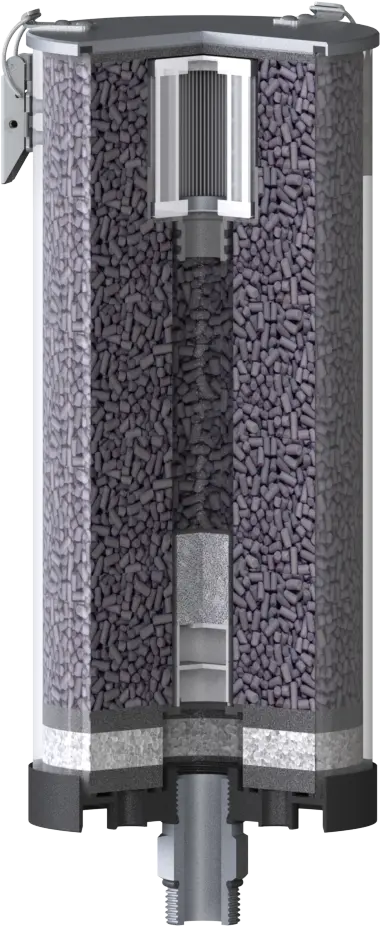

Adsorber components and their tasks.

Plastic housing (A): Protects the inner workings of the adsorber. The refillable plastic housing is durable and UV-resistant.

3µm paper filter (B): Filters finest dust and dirt particles from supply air and thus protects the system from getting filthy.

Activated carbon (C): Adsorbs finest oil particles and aerosols from exhaust air.

Oil demister (D): Prevents oil particles from escaping. They condense on the demister and drip back into the system.

Slosh protection (E): Prevents oil splashes and small oil droplets from escaping. They condense on the slosh protection and drip back into the system.

Foam filter disk (F & H):  Filters coarse dust and dirt particles from the supply air and protects the silica gel layer

Silica gel (G): Indicates by changing color from white to brown when it is time to replace the adsorber.

Opening (I): Enables air exchange with the environment when the system draws in or pushes out air for pressure equalization.

Thread (J): Connects system and adsorber. Various thread types are available.

Technical data according to size.

ADSORBER VG-R 2L VG-R 3L VG-R 5L
TOTAL WEIGHT
(KG)
1.05 2.08 4.0
ACTIVATED CARBON
(KG)
0.3 0.9 2.2
HEIGHT
(MM)
233.5 348.5 387
DIAMETER
(MM)
90/121 110/140.5 150/180
CONNECTION BSP, NPT (Metric & Slipfit with adapter) BSP, NPT (Metric & Slipfit with adapter) BSP, NPT (Metric & Slipfit with adapter)
VALVES
(IN-OUT)
0-0 0-0 0-0
