The VG-D series: Oil mist separators to protect hydraulics, gears, barrels & IBC against the escape of oil mist & pollutants.

Cleans the air coming out of the unit

Adsorber for oil mist, pollutants & odors

Recommended for turbo gearboxes, testbenches & recirculating oil lubrication systems

Suitable for indoor, outdoor & offshore use


SHOP ONLINE


Disposable

Easy to change single-use adsorber.

ATEX

Not suitable for explosion protection zones.

Offshore suitable

Suitable for use in salty air.

REACH compliant

Safe and harmless product.

RoHS compliant

Safe and harmless product.

IP protection class

IP 63

UV resistance

High

Operating temperature

-40°C to +80°C

Corrosivity class

C5

Material information

Polyamide (PA), polycarbonate (PC), polyvinyl chloride(PVC), FKM, activated carbon, silica gel colourless

Suitable substances

Hydraulic oil, gear oil, biological oil, vegetable oil, transformer oil, insulating oil, AdBlue (Urea), diesel fuel, isocyanates, polyols, anhydrite, adhesives, resins, amines, PU metal catalysts, flame retardants, diethanolamine, silicone

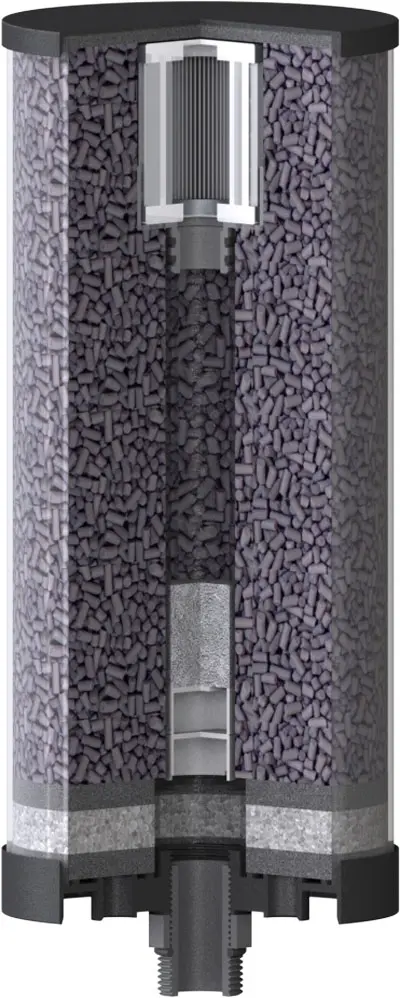

VG-D
A
B
C
D
E
F
G
H
I
J
K

Adsorber components and their tasks.

Plastic housing (A): Protects the inner workings of the adsorber. The disposable plastic housing is durable and UV-resistant.

Activated carbon disk (B): Adsorbs oil particles and aerosols from exhaust air.

3µm paper filter (C): Filters finest dust and dirt particles from supply air and thus protects the system from getting filthy.

Activated carbon (D): Adsorbs finest oil particles and aerosols from exhaust air.

Oil demister (E): Prevents oil particles from escaping. They condense on the demister and drip back into the system.

Slosh protection (F): Prevents oil splashes and small oil droplets from escaping. They condense on the slosh protection and drip back into the system.

Foam filter disk (G & I):  Filters coarse dust and dirt particles from the supply air and protects the silica gel layer

Silica gel (H): Indicates by changing color from white to brown when it is time to replace the adsorber.

Opening (J): Enables air exchange with the environment when the system draws in or pushes out air for pressure equalization.

Thread (K): Connects system and adsorber. Various thread types are available.

Technical data according to size.

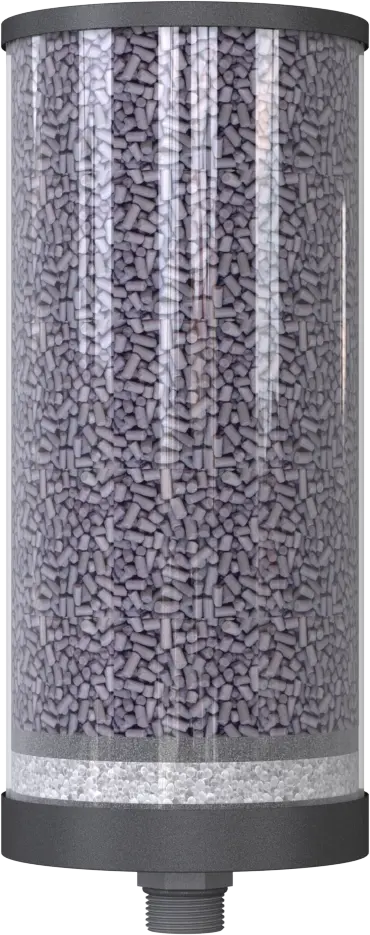

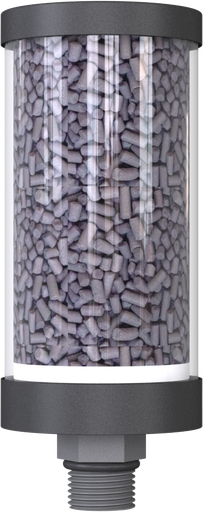

ADSORBER VG-D 1L VG-D 2L VG-D 3L VG-D 5L
TOTAL WEIGHT
(KG)
0.23 0.78 1.61 3.37
ACTIVATED CARBON
(KG)
0.1 0.3 0.9 2.2
HEIGHT
(MM)
141 209,5 325.5 364
DIAMETER
(MM)
60/62,5 90/94 110/114 150/154
CONNECTION BSP, NPT (Metric with adapter) BSP, NPT (Metric & Slipfit with adapter) BSP, NPT (Metric & Slipfit with adapter) BSP, NPT (Metric & Slipfit with adapter)
VALVES
(IN-OUT)
0-0 0-0 0-0 0-0
