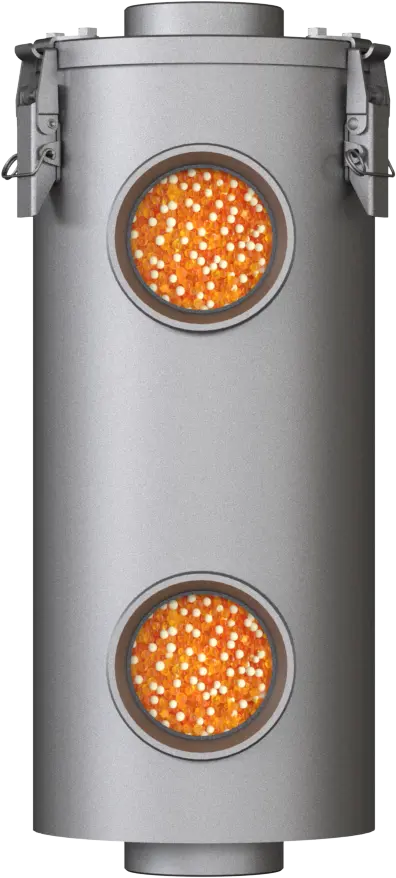

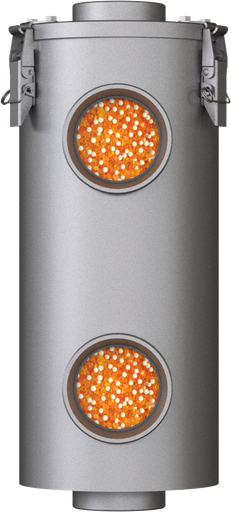

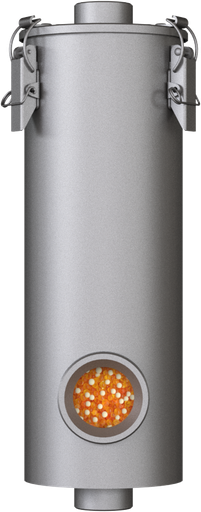

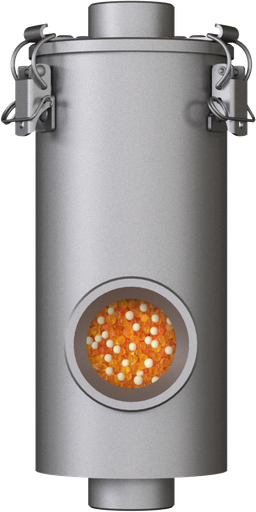

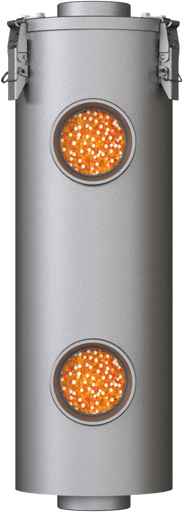

The VE-R series: Inline filters to dry & filter pipeline air flows of storage tanks in harsh environments & ATEX zones.
No corrosion inside your storage tank
No quality degradation of contained substances
Designed for DN50 / 2" pipes
Suitable for use in harsh environments and explosion protection zones according to ATEX 2014
Refillable
Sustainable multiple-use adsorber.
ATEX conform
Suitable for explosion protection zones.
Offshore suitable
Suitable for use in salty air.
REACH compliant
Safe and harmless product.
RoHS compliant
Safe and harmless product.
IP protection class
IP 68
UV resistance
High
Operating temperature
-40°C to +80°C / 160°C
Corrosivity class
CX
Material information
Stainless steel, Polyamide (PA),GIEBEL Xdry®
Suitable substances
Hydraulic oil, gear oil, biological oil, vegetable oil, transformer oil, insulating oil, AdBlue (Urea), diesel fuel, isocyanates, polyols, anhydrite, gasolene, kerosene, acetic acid, polyethylene glycol, isopropyl alcohol, diethylene glycol, brake fluid, SKYDROL, HyJet IV & V, acetone, butyl acetate, ethanol, ethyacetate, sulfuric acid, benzenesulfonic acid, dichloromethane, methanol, caustic soda

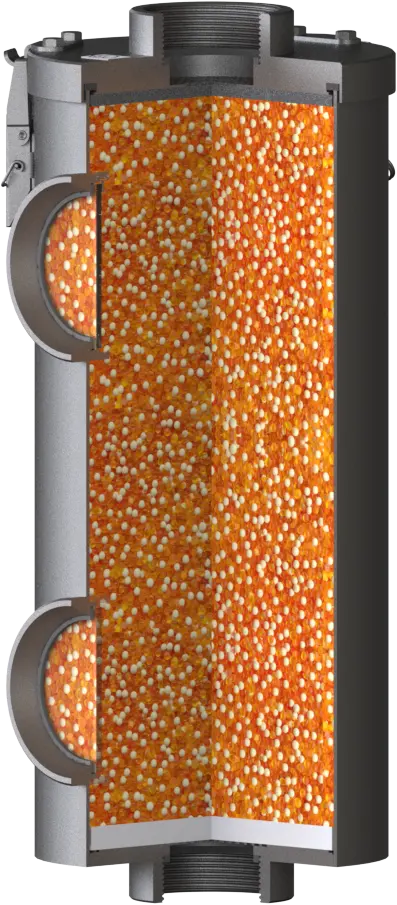

Adsorber components and their tasks.
Metallic housing (A): Protects the inner workings of the adsorber. The refillable stainless steel housing is suitable for harsh environments and explosion protection zones and is UV-resistant.
Filter grid (B & F): Filters coarse dust and dirt particles from the supply air.
Activated carbon disk (C): Adsorbs oil particles and aerosols from exhaust air. The activated carbon layer not only protects the desiccant from contact with oil, but also prevents harmful oil mist from escaping the system.
GIEBEL Xdry® (D): Ensures effective drying of the air flowing through and indicates by changing color from orange to green when it is time to replace the adsorber.
2µm fleece filter (E): Filters finest dust and dirt particles from supply air and thus protects the system from getting filthy.
Thread (G): Connects system and adsorber.
Technical data according to size.
 |
 |
 |
 |
|
|---|---|---|---|---|
| ADSORBER | VE-R 2L | VE-R 3L | VE-R 5L | VE-R 5XL |
| TOTAL WEIGHT (KG) |
2.51 | 4.80 | 9.9 | 12.0 |
| GIEBEL XDRY® (KG) |
0.8 | 1.9 | 4.1 | 5.4 |
| COLOR-CHANGE CAPACITY (ML) |
280 | 665 | 1435 | 1890 |
| HEIGHT (MM) |
232 | 343 | 377 | 477 |
| DIAMETER (MM) |
88,9/120 | 108/140 | 150/180 | 150/180 |
| CONNECTION | BSP G1"f | BSP G1"f | BSP G2"f | BSP G2"f |
|
|
|
|
|
|---|---|---|---|---|
