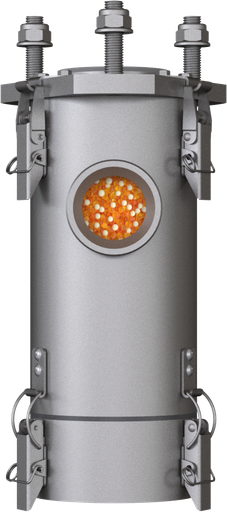

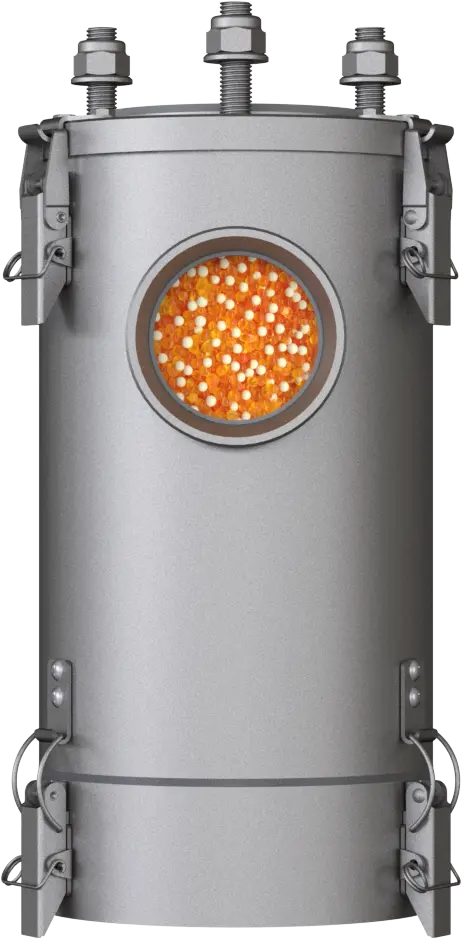

The TM-RV series: Dehumidifiers to protect transformers in ATEX zones against moisture damage.

No corrosion inside your transformer
No quality degradation of transformer oil
Hanging version available with all typical transformer connections

Suitable for use in explosion protection zones according to ATEX 2014


SHOP ONLINE


Refillable

Sustainable multiple-use adsorber

ATEX conform

Suitable for explosion protection zones

Offshore suitable

Suitable for use in salty air.

REACH compliant

Safe and harmless product.

RoHS compliant

Safe and harmless product.

IP protection class

IP 66

UV resistance

Very high

Operating temperature

-40°C to +80°C / 125°C

Corrosivity class

CX

Material information

Aluminium, polycarbonate (PC), polyamide (PA), FKM, GIEBEL Xdry®, activated carbon

Suitable substances

Transformer oil, insulating oil

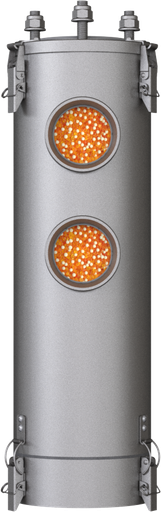

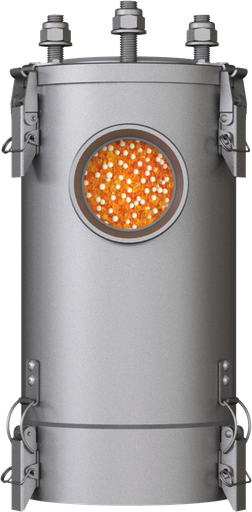

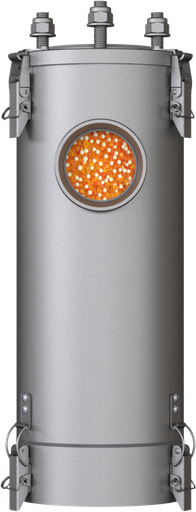

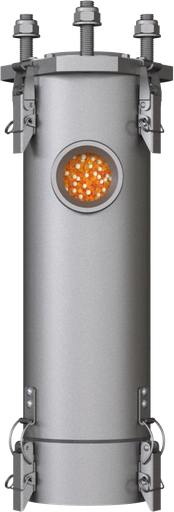

TM-RV
A
B
C
D
E
F
G

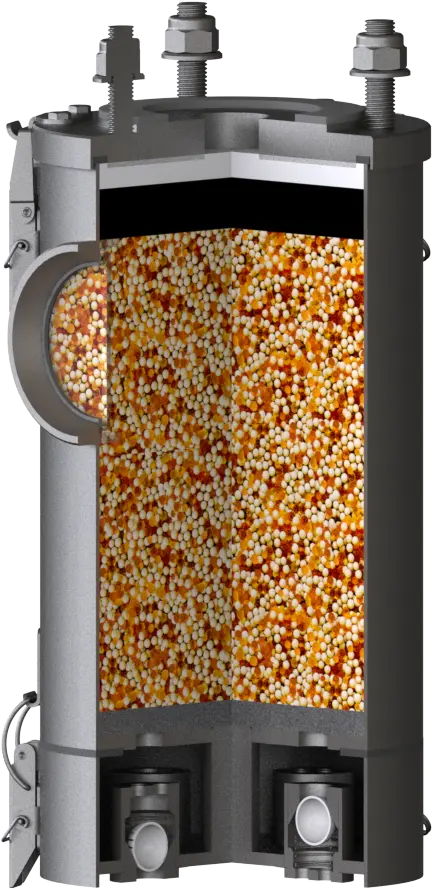

Adsorber components and their tasks.

Thread (A): Connects system and adsorber. Typical transformer connections (DIN42562, DIN42567A, DIN42567B, DIN42567C-G1"f, ...) are available.

Activated carbon disk (B): Adsorbs oil particles and aerosols from exhaust air. The activated carbon layer not only protects the desiccant from contact with oil, but also prevents harmful oil mist from escaping the system.

2µm fleece filter (C): Filters finest dust and dirt particles from supply air and thus protects the system from getting filthy.

Metallic housing (D): Protects the inner workings of the adsorber. The refillable stainless steel housing is suitable for harsh environments, explosion protection zones and offshore use and is highly UV-resistant.

GIEBEL Xdry® (E): Ensures effective drying of the air flowing through and indicates by changing color from orange to green when it is time to replace the adsorber.

Foam filter disk (F): Filters coarse dust and dirt particles from the supply air.

Valve (G): Enables air exchange with the environment when the system draws in or pushes out air for pressure equalization and at the same time protects the desiccant from unnecessary loading while the system is at a standstill.

ADSORPTION PROCESS:
If the oil level in the system drops, air flows in to equalize pressure. This air enters the adsorber via the valves (G) and flows through a coarse filter (F), which separates larger dirt and dust particles. The GIEBEL Xdry® filling (E) then separates moisture up to 2% RH (average 10% RH). A 2μm filter (B) removes even the finest dirt and dust particles from the supply air.

Dry and clean air enters the system.

DESORPTION PROCESS:
If the oil level rises, air is pressed out of the system. This air contains oil particles and aerosols that are separated by the activated carbon (F). Some of the previously adsorbed moisture is removed from the desiccant as the air flows out, ensuring cyclical self-regeneration.

Clean air escapes the system.

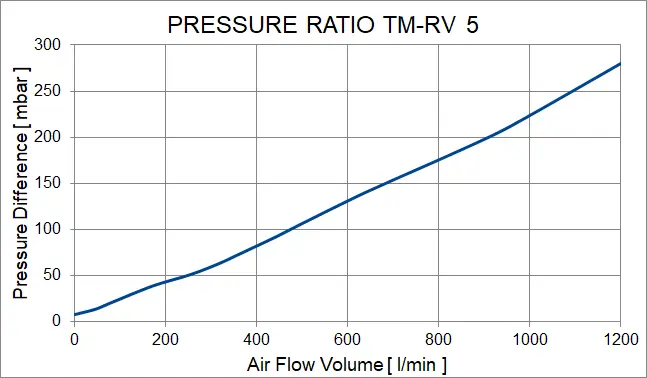

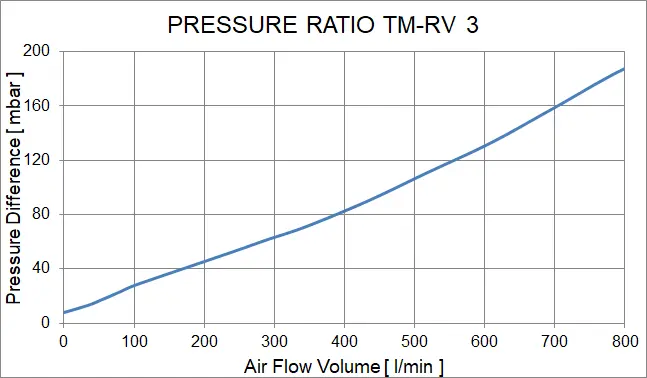

Pressure ratios.
