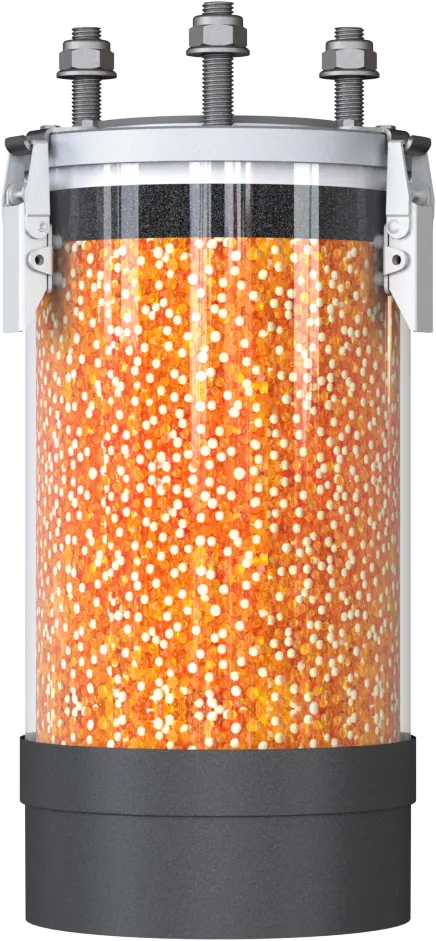

The TB-RV series: Dehumidifiers to prevent moisture damage in transformers.

No corrosion inside your transformer
No quality degradation of transformer oil

Hanging version available with all typical transformer connections

Suitable for indoor, outdoor & offshore use


SHOP ONLINE


Refillable

Sustainable multiple-use adsorber

ATEX

Not suitable for explosion protection zones

Offshore

Not suitable for use in salty air

REACH compliant

Safe and harmless product

RoHS compliant

Safe and harmless product

IP protection class

IP 66

UV resistance

High

Operating temperature

-40°C to +80°C /125°C

Corrosivity class

C4

Material information

Polyamide (PA), polycarbonate (PC), FKM, GIEBEL Xdry®, activated carbon

Suitable substances

Transformer oil, insulating oil

TB-RV
A
B
C
D
E
F
G

Adsorber components and their tasks.

Thread (A): Connects system and adsorber. Typical transformer connections (DIN42562, DIN42567A, DIN42567B, DIN42567C-G1"f, ...) are available.

Activated carbon disk (B): Adsorbs oil particles and aerosols from exhaust air. The activated carbon layer not only protects the desiccant from contact with oil, but also prevents harmful oil mist from escaping the system.

2µm fleece filter (C): Filters finest dust and dirt particles from supply air and thus protects the system from getting filthy.

Plastic housing (D): Protects the inner workings of the adsorber. The refillable plastic housing is durable and UV-resistant.

GIEBEL Xdry® (E): Ensures effective drying of the air flowing through and indicates by changing color from orange to green when it is time to replace the adsorber.

Foam filter disk (F): Filters coarse dust and dirt particles from the supply air.

Valve (G): Enables air exchange with the environment when the system draws in or pushes out air for pressure equalization and at the same time protects the desiccant from unnecessary loading while the system is at a standstill.

ADSORPTION PROCESS:
If the oil level in the system drops, air flows in to equalize pressure. This air enters the adsorber via the valves (G) and flows through a coarse filter (F), which separates larger dirt and dust particles. The GIEBEL Xdry® filling (E) then separates moisture up to 2% RH (average 10% RH). A 2μm filter (B) removes even the finest dirt and dust particles from the supply air.

Dry and clean air enters the system.

DESORPTION PROCESS:
If the oil level rises, air is pressed out of the system. This air contains oil particles and aerosols that are separated by the activated carbon (F). Some of the previously adsorbed moisture is removed from the desiccant as the air flows out, ensuring cyclical self-regeneration.

Clean air escapes the system.

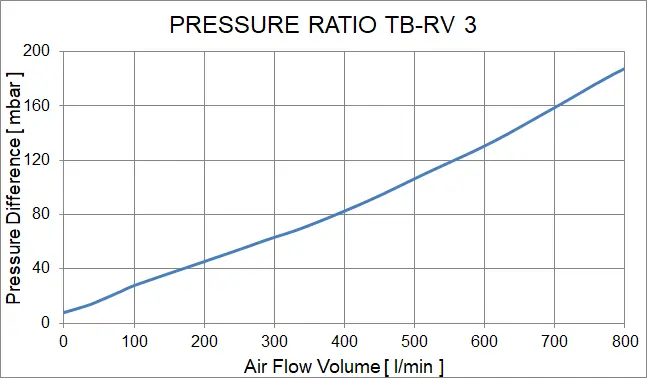

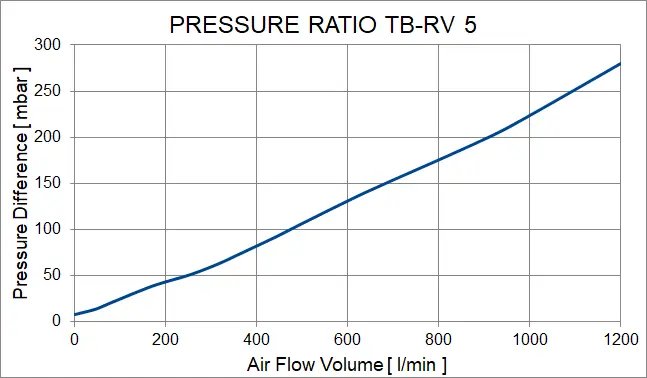

Technical data according to size.

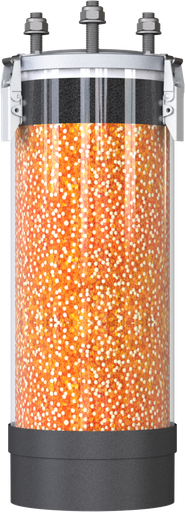

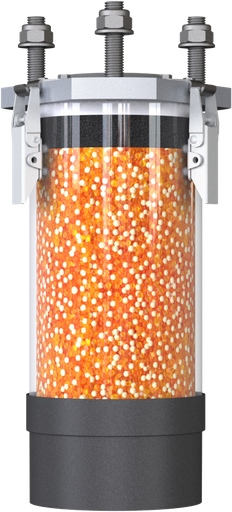

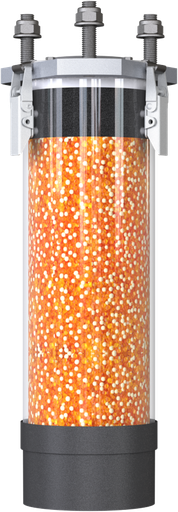

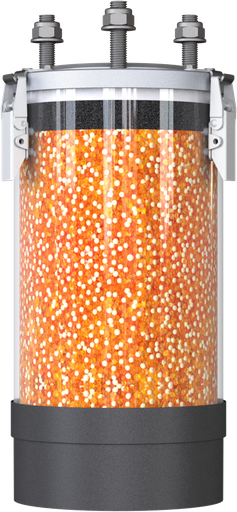

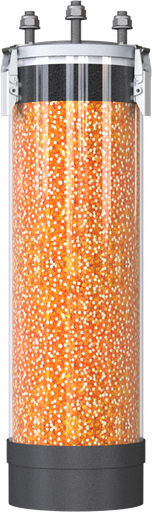

ADSORBER TB-RV 3M TB-RV 3L TB-RV 5M TB-RV 5L TB-RV 5XL
TOTAL WEIGHT
(KG)
2.7 6.79 9.6 11.5 13.8
GIEBEL XDRY®
(KG)
1.0 1.65 2.6 3.6 5
COLOR-CHANGE CAPACITY
(ML)
350 578 910 1260 1750
HEIGHT
(MM)
273 381 308 408 508
DIAMETER
(MM)
110/150 108/150 150/180 150/180 150/180
CONNECTION DIN42562, DIN42567A, DIN42567B DIN42567C-G1"f DIN42562, DIN42567A, DIN42567B DIN42567C-G1"f, DN25 DIN42562 DIN42562, DN32, DN40 DIN42562
VALVES
(IN-OUT)
2-2 2-2 3-3 3-3 3-3
