Mounting adapters - for mounting adsorbers offset or horizontal.

Simple screw-on solution

No modifications to the system required

Perfect for easy adsorber installation on hydraulics, gears, barrels & IBC


BUY ONLINE HOW IT WORKS INSTALLATION TECHNICAL DATA FAQ DOWNLOADS


Assembly made easy.

It is not always possible to install an adsorber directly on the system. If space is limited, mounting adapters can help. They allow an offset or horizontal mounting of the adsorber.


BUY ONLINE


How it works.

Mounting adapters allow you to install adsorbers in difficult spaces by relocating the installation site upwards or to the side using straight or angled pipe connections. They can also be used to install adsorbers horizontally or to connect several adsorbers at the same time.


They are screwed into existing threads on the system and, depending on the type, have one or two threads for screwing in adsorbers.

If the threads on the system and the mounting adapter do not match, adapters and flange adapters can be screwed in between.


BUY ONLINE

Installation of a mounting adapter.

Step 1: Mounting adapter

Step 2: Adsorber


Step 1: Mounting adapter

Step 2: Adsorber


Technical data.

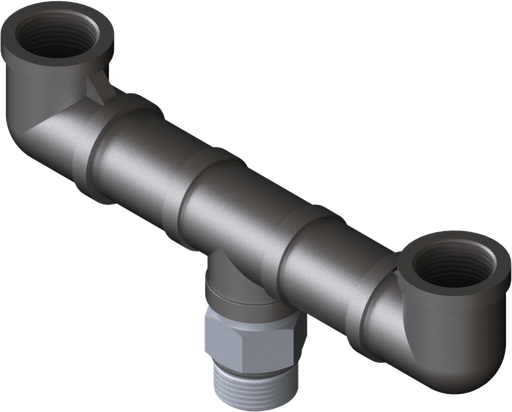

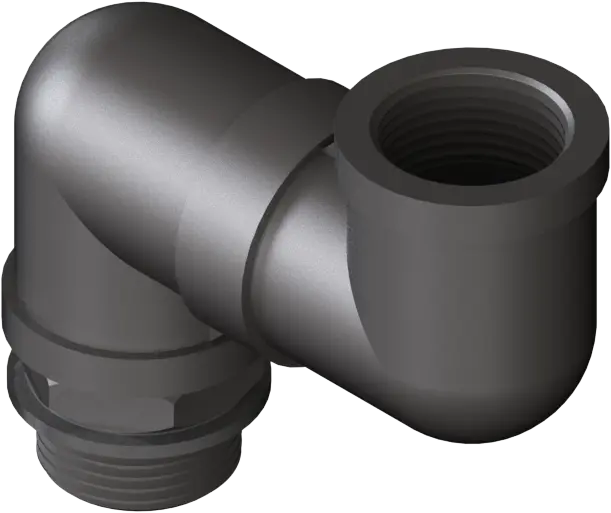

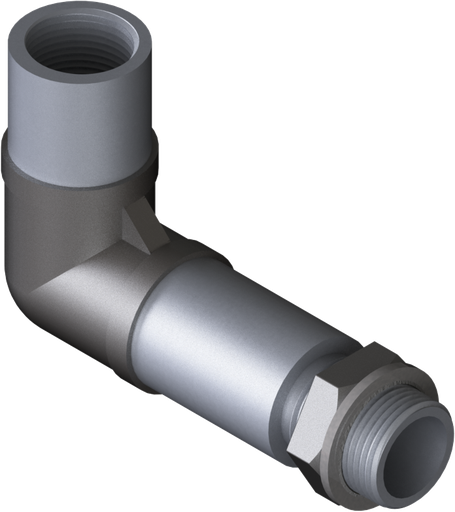

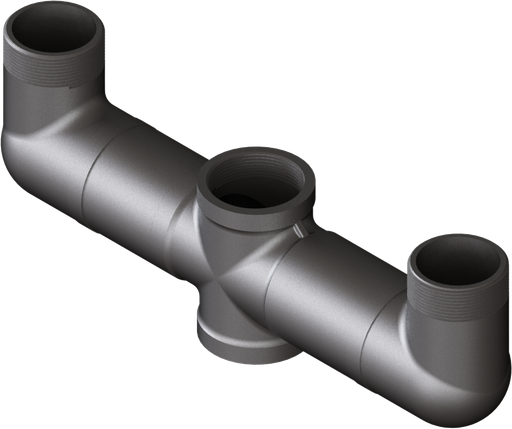

MOUNTING ADAPTER IAD-AL G1" IAD-SS G1" AL 1x90° G3/4" SS 2x90° SS 2-V G1" SS 2-V-2"m 2-2 Plug threaded SS G2m
TOTAL WEIGHT
(KG)		 0.64 1.53 0.403 0.99 1.28 1.874
HEIGHT
(MM)		 253 253 60 104 99 99
WIDTH
(MM)		 40 40 123 99 264 396
DEPTH
(MM)		 40 40 35 45 45 71
CONNECTIONS G1"f, G1"m G1"f, G1"m G3/4"f, G3/4"m G1"f, G1"m G1"f, G1"m 2"m, 2"f
